Drop-In DIN 41612 Replacements
Same Footprint. Same Performance.
Up to 50% Lower Cost.
Switch from branded DIN 41612 connectors with zero redesign. Drop-in compatible footprint, fit & function.
The Hidden Cost of Premium DIN41612 Supply Chains
Branded DIN41612 connectors are trusted worldwide — but long qualification cycles, limited flexibility, and premium pricing can increase your total sourcing cost.
Premium Pricing After Design Lock-In
Once a branded connector is qualified into your design, switching suppliers requires engineering validation — which often keeps companies paying higher component costs.
Long Lead Times Create Production Risk
Extended manufacturing cycles and allocation constraints from major suppliers can delay prototype builds, production schedules, and maintenance replacements.
Minimum Orders Limit Flexibility
Large production minimums and distributor pricing structures can make prototypes and low-volume builds unnecessarily expensive for engineering teams.
Qualification Takes Time
Replacing a qualified connector requires confidence in mechanical compatibility, electrical performance, and documentation completeness before production.
Why Switch Now?
A qualified alternative supply chain for engineers who cannot afford brand dependency — without compromising quality or compliance.
| Challenge | Traditional Brand Supply | Helpconn Supply |
|---|---|---|
| Component Cost | Premium pricing | Competitive pricing |
| Lead Time | Longer cycles | Flexible production |
| Order Quantity | Distributor restrictions | Prototype friendly |
| Documentation | Available | Complete technical package |
| Qualification | Engineer burden | Supplier support |
Your Reliable Alternative to Branded DIN41612 Connectors
Six reasons engineers choose our DIN41612 solutions — compatible, documented, flexible, and built for industrial applications.
Drop-In Compatible — No PCB Redesign Required
Designed to match standard DIN 41612 mechanical dimensions and electrical requirements. We provide cross-reference support, drawings, and dimensional verification to confirm fit before production.
- Cross-reference support
- Dimension verification
- Mechanical drawings available
- Compatible options for major brands
Faster Lead Times — Keep Projects Moving
Typical lead times of 2–4 weeks for standard configurations, compared with longer schedules often quoted by major branded suppliers.
- Typical 2–4 week lead time
- Flexible production scheduling
- Support for urgent requirements
Flexible MOQ — From Prototype to Production
Whether you need samples for validation or volume supply for production, we support flexible order quantities without traditional high MOQ restrictions.
- Prototype quantities
- Low-volume production
- OEM volume orders
Complete Compliance Documentation
Documentation available including IEC 60603-2 compliance, RoHS, REACH, and applicable safety certifications based on product configuration.
- IEC 60603-2 compliance
- RoHS & REACH documentation
- Product specifications & test reports
Complete Engineering Documentation
Datasheets, mechanical drawings, 3D STEP models, PCB footprints, and technical specifications are available to accelerate your design process.
- Datasheets
- 2D drawings
- 3D STEP models
- PCB footprints
- Pin configuration details
Free Samples & Technical Support
Qualified engineers can request samples for evaluation, supported by technical assistance during component selection, testing, and qualification.
- Sample requests available
- Application guidance
- Design verification support
Direct Factory Alternative — Reduce Component Cost
Get equivalent DIN 41612 performance with a more flexible supply model and competitive pricing compared with traditional branded suppliers.

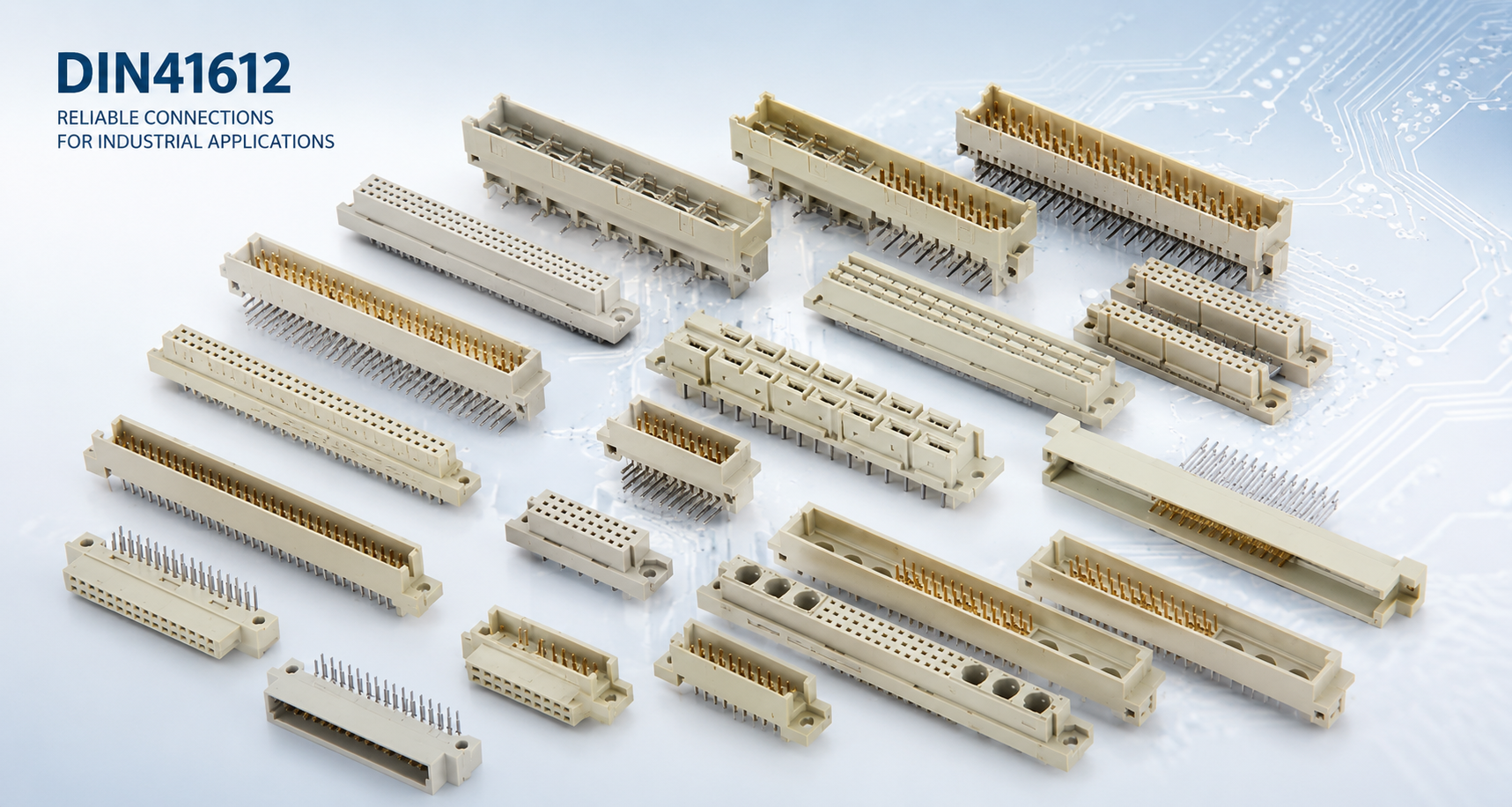

Complete DIN 41612 Connector Range
Standard and custom DIN 41612 compatible connectors covering signal, power, mixed-contact and backplane configurations — engineered to the same footprint as branded parts.

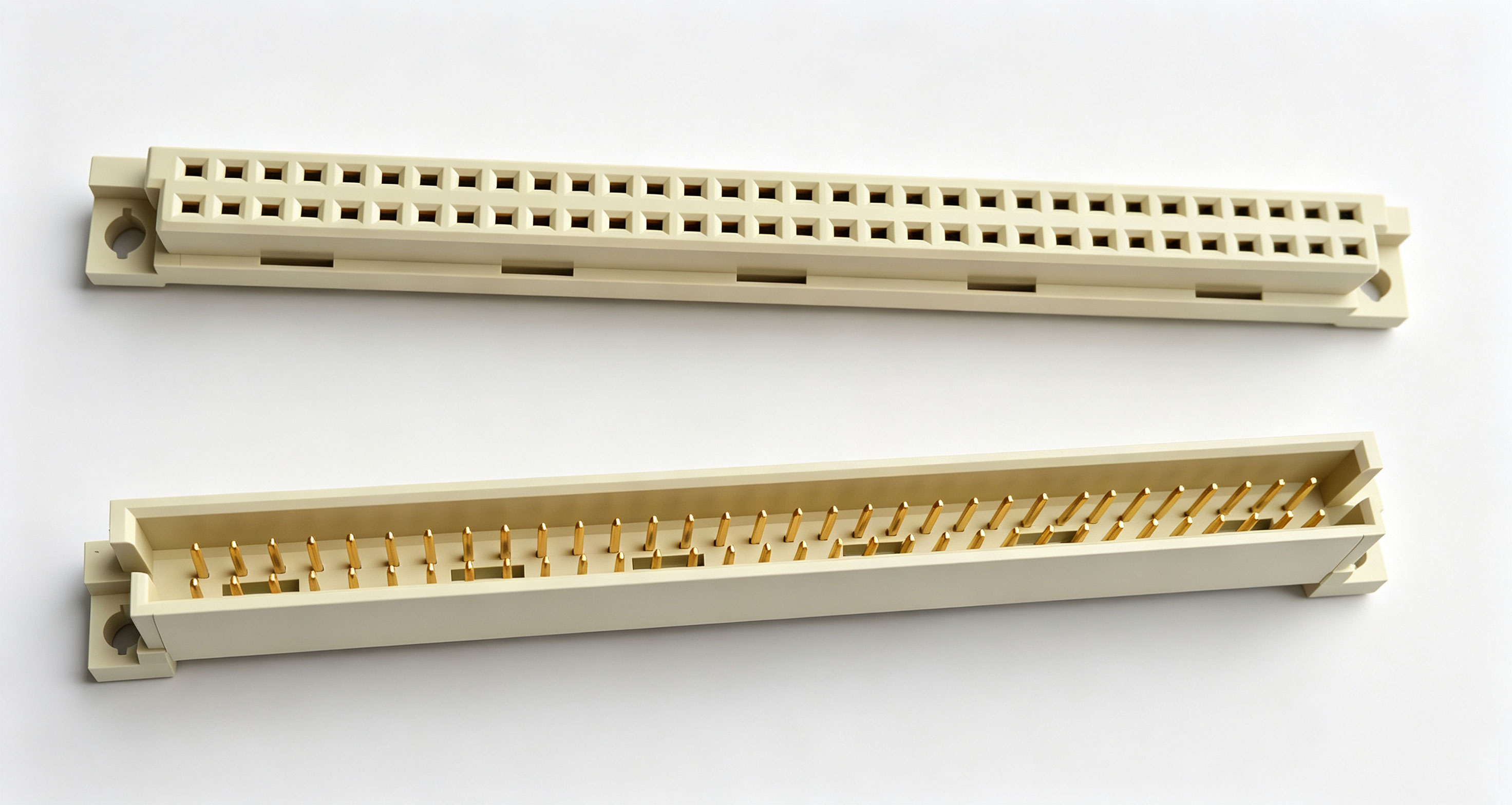

DIN 41612 Type B Connector
2-row, 64-contact standard connector widely used in industrial control systems, PLC racks, and embedded backplanes. Available right-angle or straight, male or female.

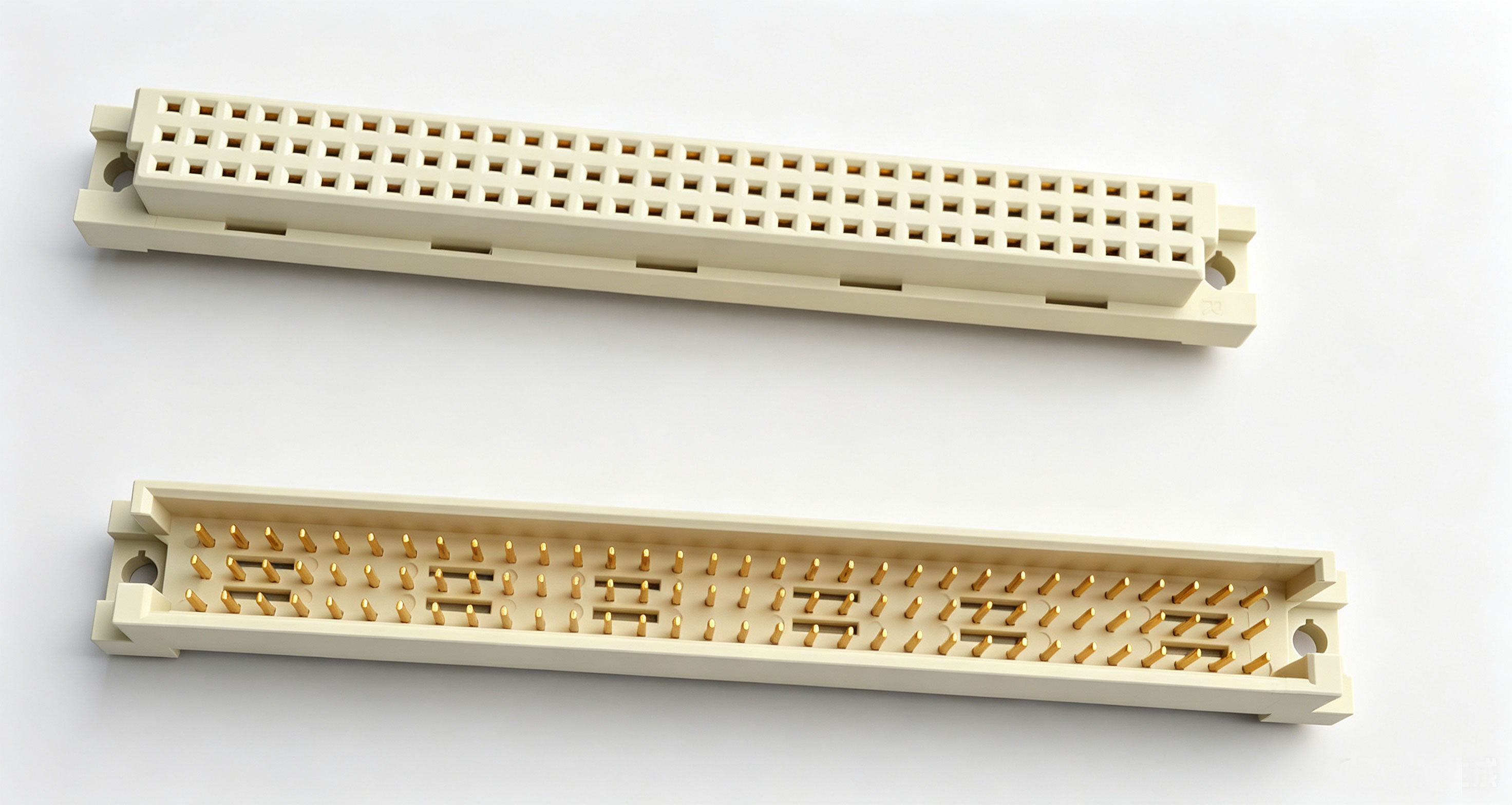

DIN 41612 Type C Connector
3-row, 96-contact high-density connector widely used in VMEbus systems, industrial computers and data backplanes — our most-requested Type C replacement.

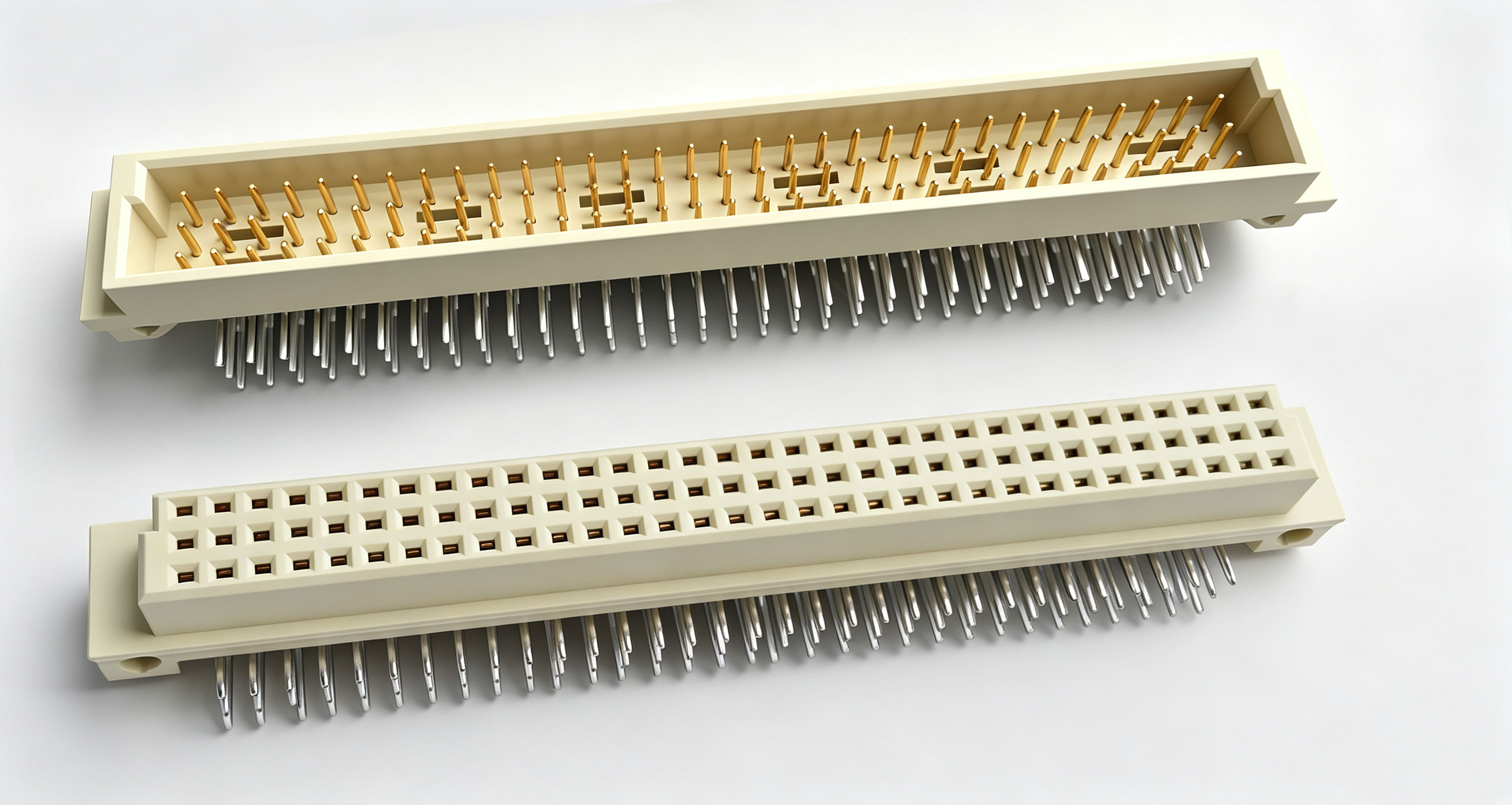

DIN 41612 Right Angle Connector
Right-angle PCB headers (Type B & Type C) designed for horizontal daughtercard and backplane applications — same footprint as branded right-angle parts.

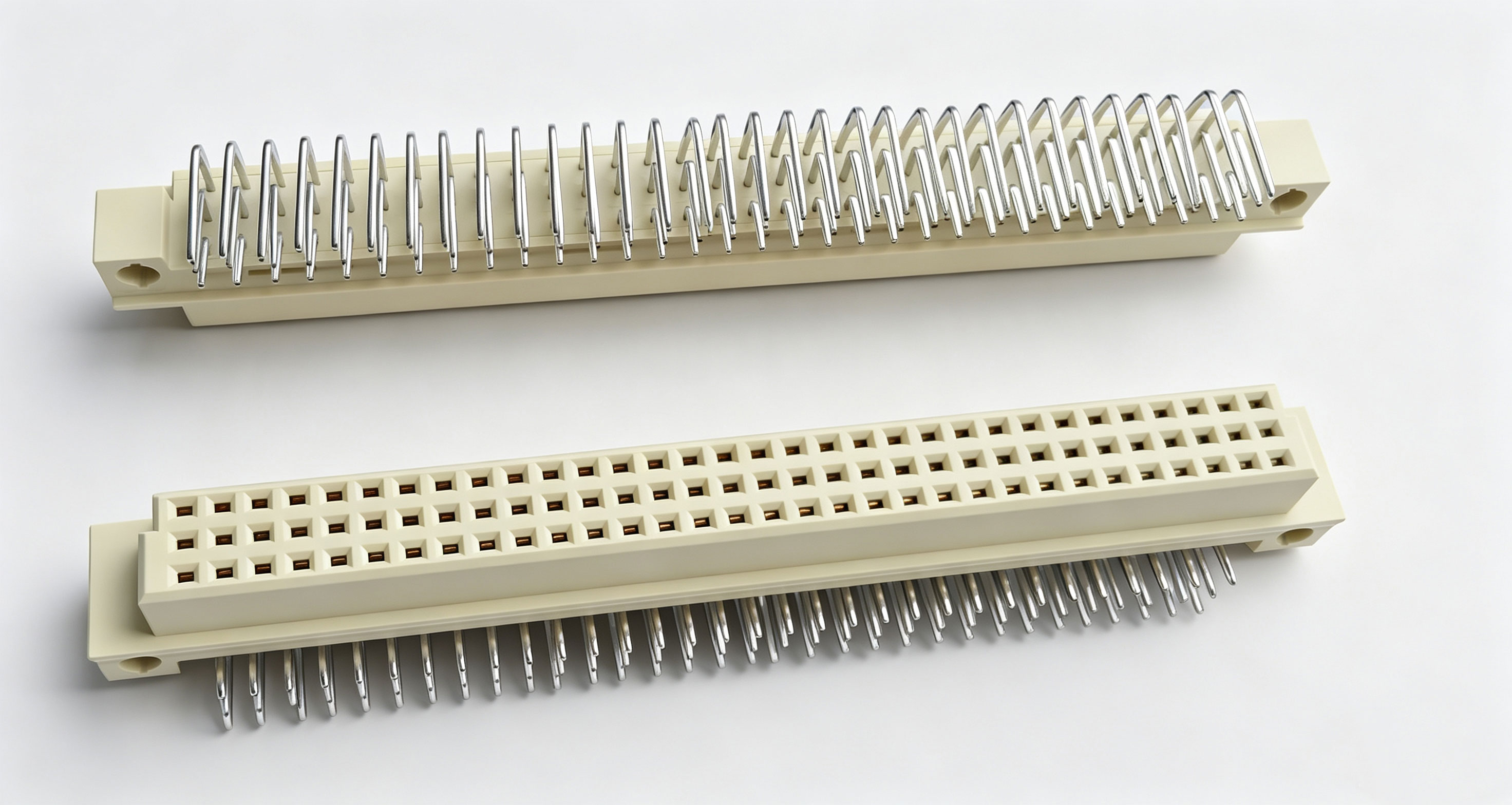

DIN 41612 Female Connector
Female receptacles and sockets available for backplane and daughtercard applications, compatible with branded male headers across all types.

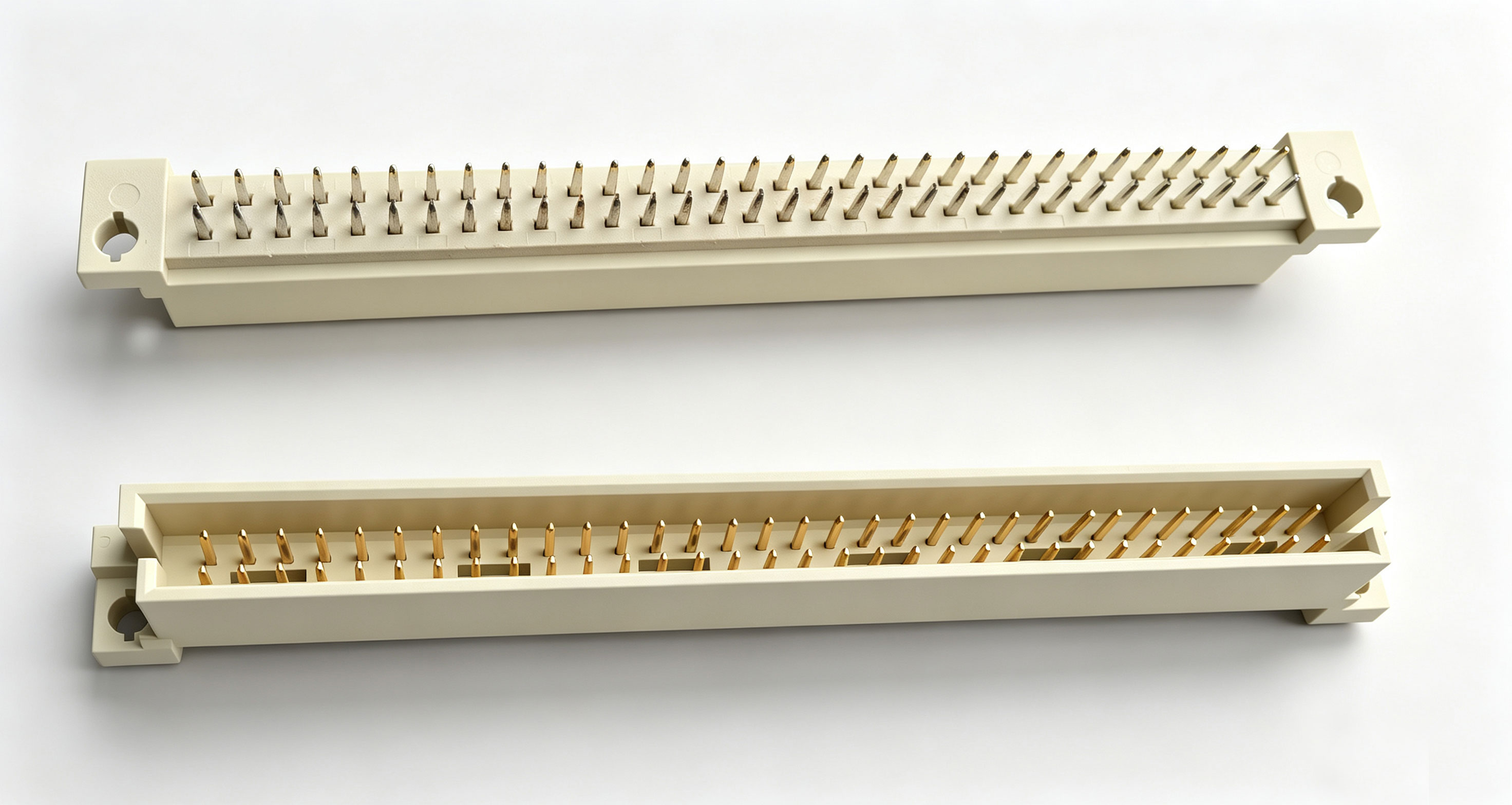

DIN 41612 Male Connector
Male headers and plugs for daughtercards, in right-angle and straight variants for every standard type.

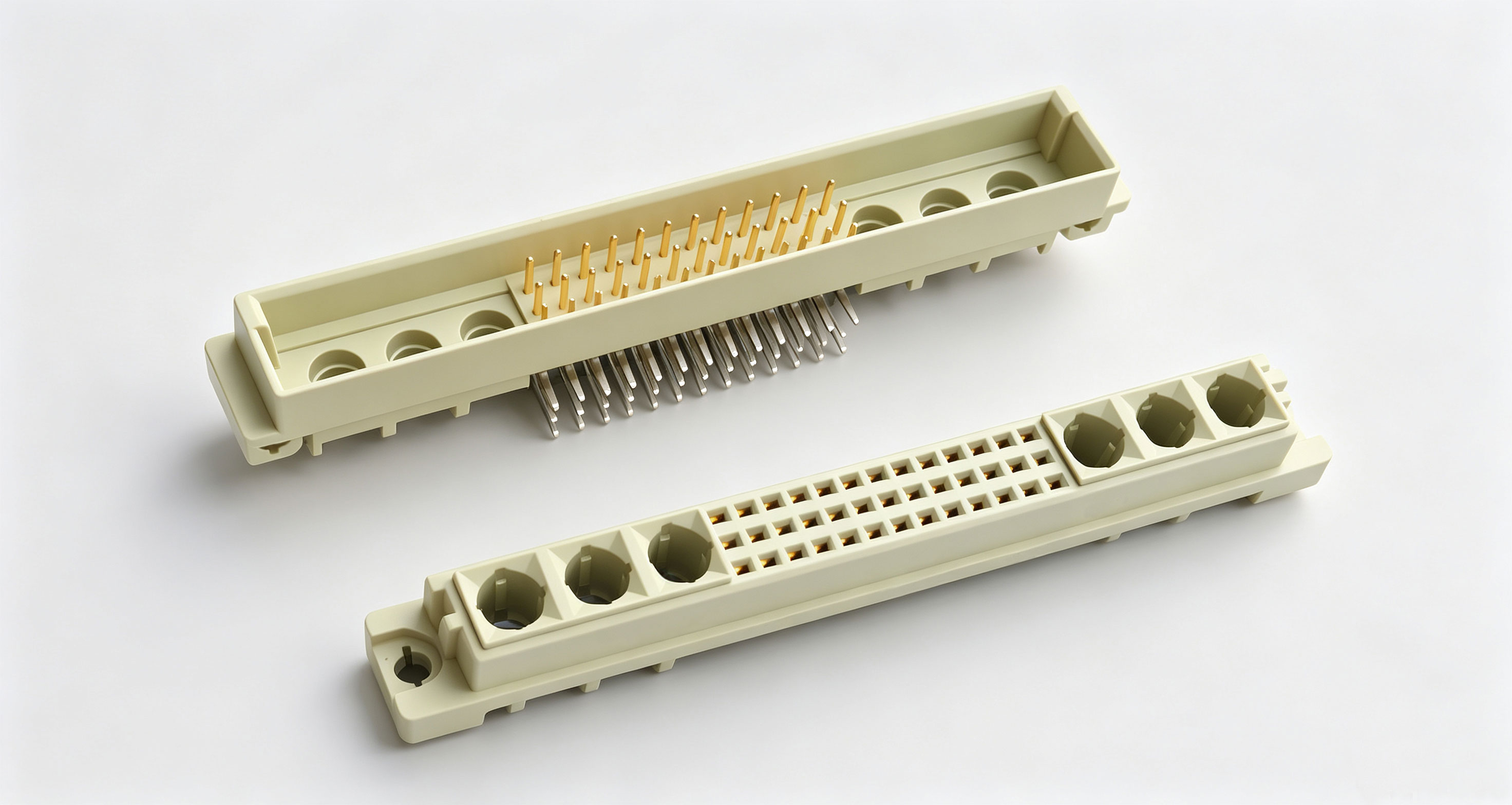

DIN 41612 Power Connector
Power variants with larger contacts supporting higher current ratings for industrial power distribution applications — direct replacements for branded DIN power connectors.
Custom DIN 41612 Configurations
For mixed-signal requirements, partial-row layouts, extended contact configurations, customer drawings and legacy replacements beyond the standard range.

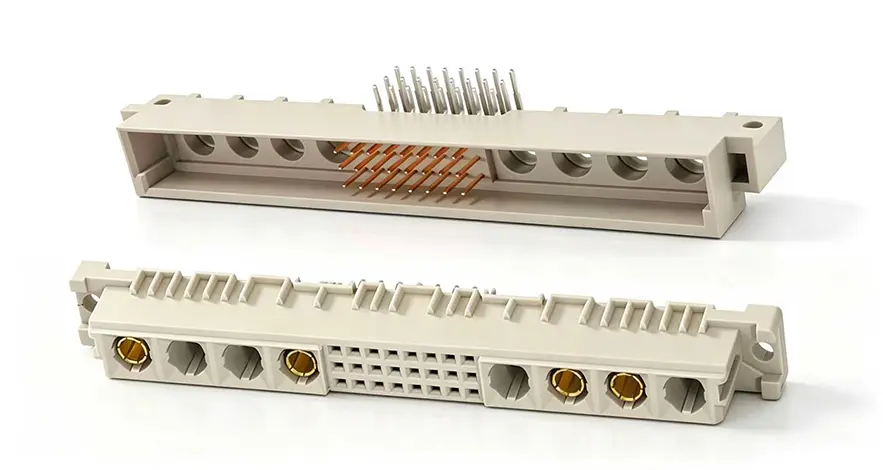

Type M — Mixed Contact
Combines signal, power and coaxial contacts in a single housing for specialized mixed-signal backplane applications.
VMEbus

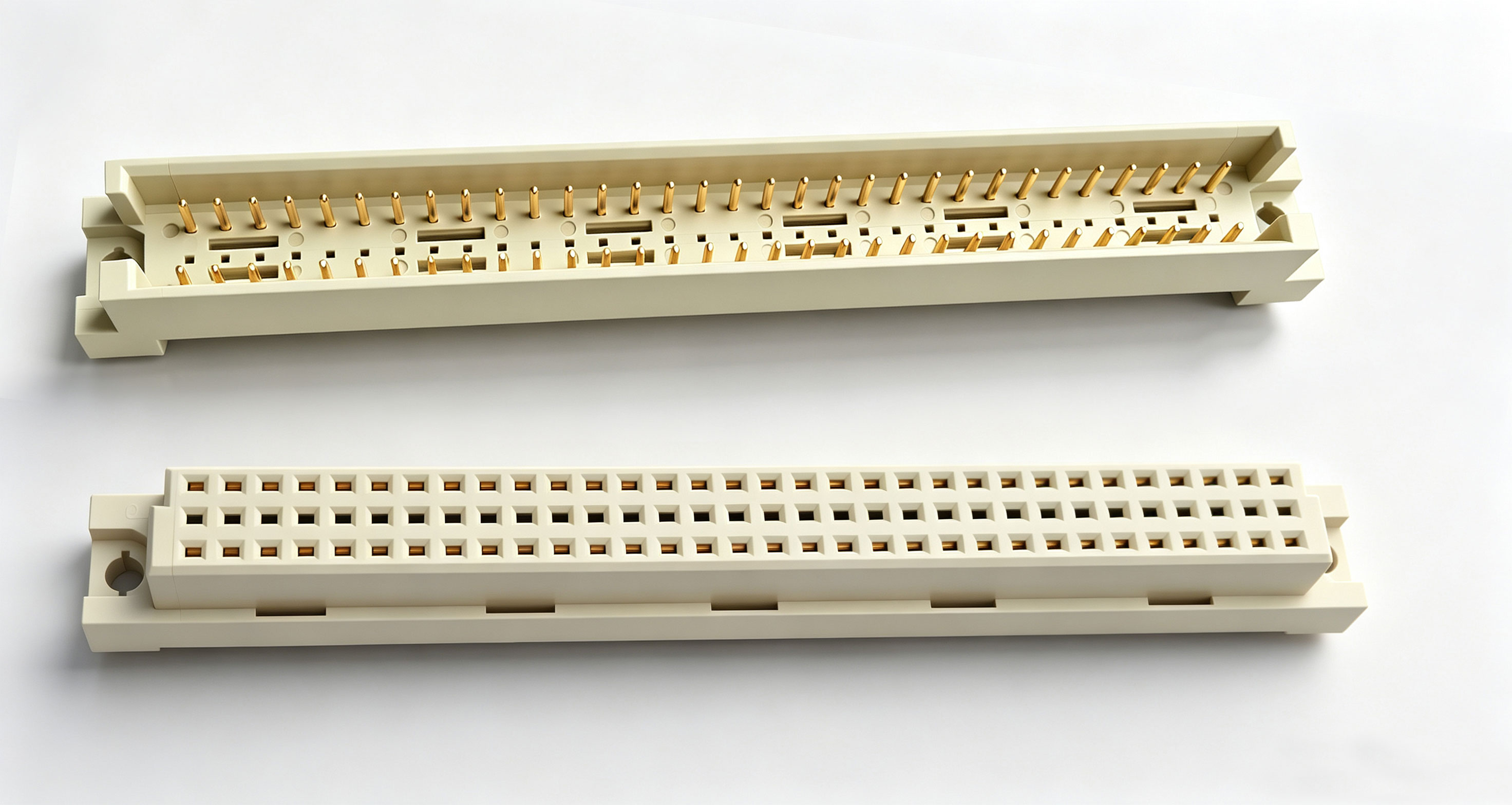

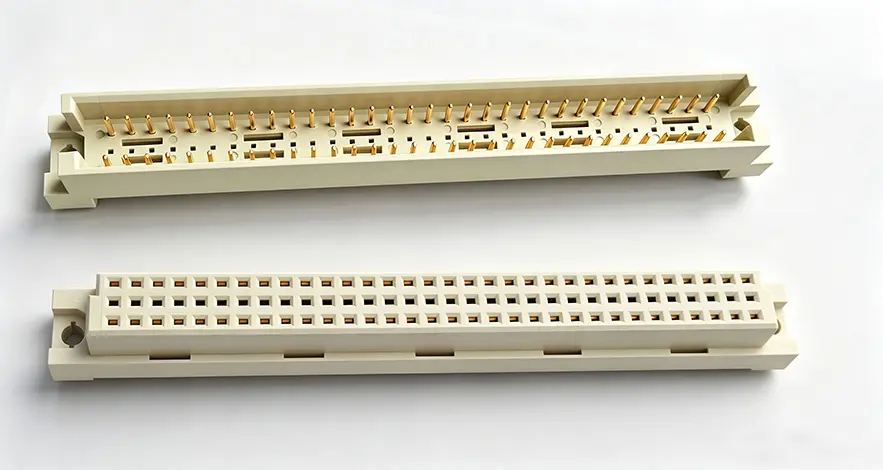

Partial-Row Configurations
Partial-row builds such as B/2, B/3, C/2 and C/3 for reduced-size or cost-optimized designs.
B/2 · C/3

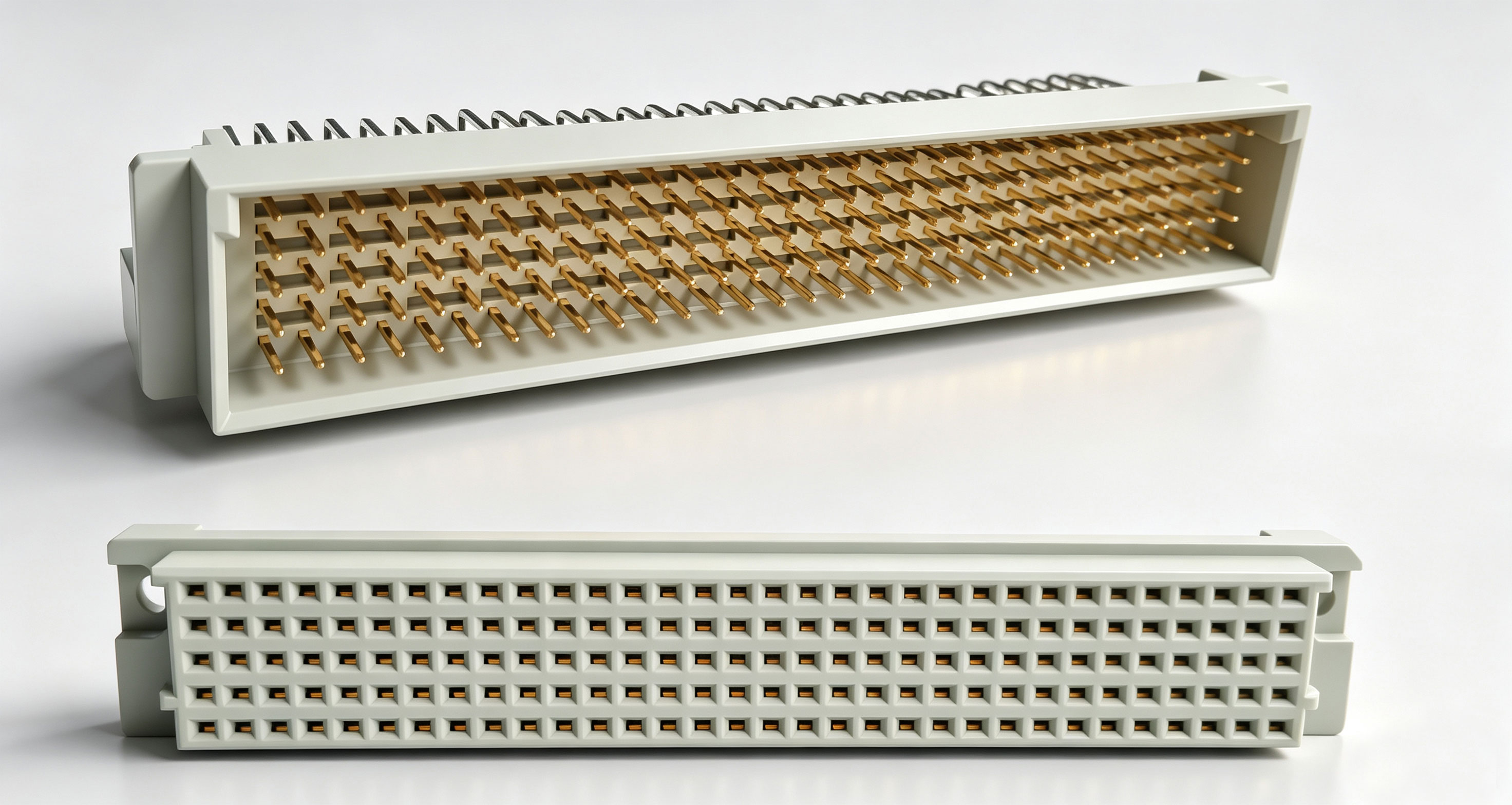

Extended-Density Configurations
Higher-contact-count builds for applications requiring more than the standard 96-position layout.
128 / 160 pins| Specification | Type B | Type C | High-Reliability Versions | Power Series |
|---|---|---|---|---|
| Contact Layout | 2-row (64) | 3-row (96) | Customized | 15–48 Contacts |
| Current Rating | Up to 2A / contact | Up to 2A / contact | Up to 2A / contact | Up to 15A / contact |
| Voltage Rating | 250V AC (Typical) | 250V AC (Typical) | Depends on Design | Up to 1000V AC |
| Contact Pitch | 2.54 mm | 2.54 mm | 2.54 mm | 5.08 mm |
| Operating Temp | -40°C to +105°C | -40°C to +105°C | -40°C to +105°C | -40°C to +105°C |
| Mating Cycles | ≥500 | ≥500 | Up to 1000 | ≥500 |
| Applications | PLC | VMEbus | Railway / Defense | Industrial Power |
Proven in Critical Industries
DIN41612 connectors have been trusted for decades in mission-critical electronic systems where reliability, standardization, and long service life are essential. From industrial automation and telecommunications infrastructure to medical and test equipment, DIN41612 provides a proven backplane connection solution for demanding environments.
Telecommunications & Networking Infrastructure
Telecommunications equipment and networking systems rely on DIN41612 connectors for reliable backplane and modular interconnection solutions.
- Network switches and communication platforms
- Telecom control systems
- Rack-mounted electronic systems
- Industrial communication equipment
Industrial Automation & Control Systems
DIN41612 remains widely used in industrial automation due to its rugged construction, standardized design, and long-term availability.
- PLC systems
- Industrial controllers
- Motion control systems
- I/O expansion modules
- Factory automation equipment
Medical & Test Instrumentation
High-reliability DIN41612 connectors support medical and measurement equipment requiring stable signal integrity and dependable operation.
- Laboratory instruments
- Diagnostic equipment
- Test and measurement systems
- Medical control modules
Technical Specifications
Full compliance with DIN 41612 / IEC 60603-2 / EN 60603-2. Every parameter verified.

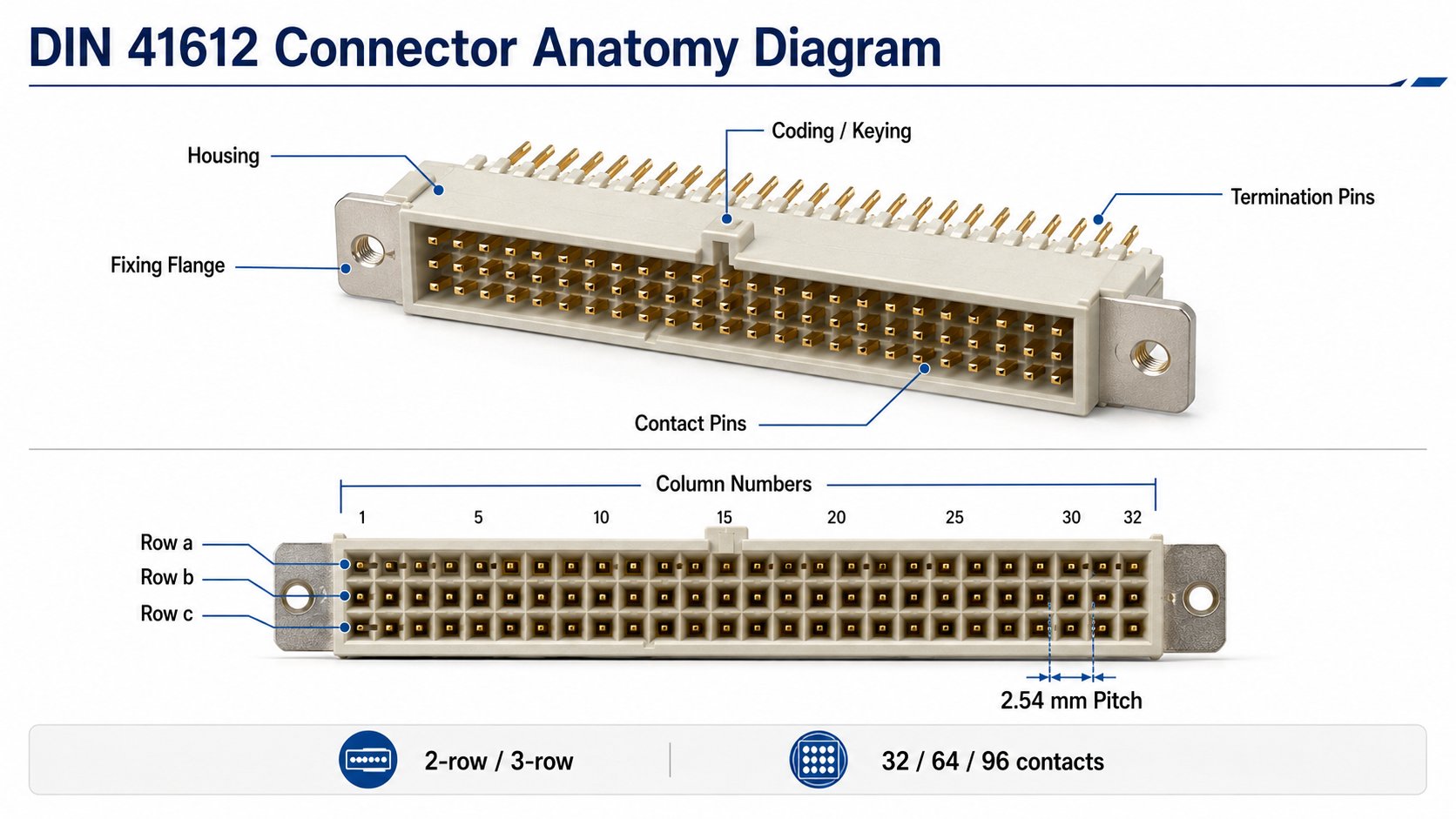

Connector anatomy: rows a/b/c, 2.54 mm pitch, and 32 / 64 / 96-contact layouts — the building blocks behind every DIN 41612 type we supply.
| Parameter | Value |
|---|---|
| Standard Compliance | DIN 41612 / IEC 60603-2 / EN 60603-2 |
| Contact Pitch | 2.54 mm (0.1") |
| Pin Configurations | 20, 32, 48, 50, 64, 96, 128, 160, 200 contacts |
| Rated Current | Up to 2A per signal contact; up to 10A per power contact |
| Rated Voltage | 250V AC (signal contacts); up to 1000V AC (power versions) |
| Contact Resistance | ≤20 mΩ |
| Insulation Resistance | ≥10¹² Ω |
| Operating Temperature | -40°C to +105°C |
| Mating Durability | 500 cycles typical; up to 1000 cycles for high-durability versions |
| Available Termination Options | Solder Tail, Press-fit, and Wire-wrap (depending on model) |
See Our DIN 41612 Connectors in Action
Watch how our drop-in replacements mount, mate, and perform — the same footprint, fit & function as branded connectors.
Need a demo for your specific application? Request a sample →
Why OEMs Choose Our DIN 41612 Connectors
100% drop-in compatible with industry-standard DIN 41612 interfaces. Reduce procurement costs by up to 50%, shorten lead times to 2–4 weeks, and receive complete engineering support—all without compromising quality or compliance.
| Feature | Our DIN 41612 Connectors | Typical Market Supplier |
|---|---|---|
| Form, Fit & Function | Drop-In Compatible | Standard Compatible |
| Standard Lead Time | 2–4 Weeks | 10–18 Weeks |
| Minimum Order Quantity | No MOQ | 250–500 pcs |
| Manufacturing Quality | ISO 9001 Certified Production | Varies by Supplier |
| Compliance | UL / RoHS Documentation Available* | Varies by Product Series |
| Engineering Documentation | Datasheets, Drawings, Test Reports & Material Declarations Included | Typically Available Upon Request |
| Engineering Support | Dedicated Application Engineering Support | Business Hours Support |
| Qualification Samples | Free Samples Available for Evaluation | Usually Limited or Chargeable |
| Customization | Custom Pin Counts, Plating & Packaging Available | Limited Options |
| PCB Redesign | Not Required | Usually Required |
Trusted by 200+ Industrial Clients Worldwide
See why engineers and procurement managers are switching to our DIN41612 solutions.
"We switched from branded connectors to their DIN41612 equivalent and saved 35% on our BOM cost. The cross-reference tool made the transition seamless — we found the exact match in under 5 minutes. Lead times dropped from 10 weeks to 3."
Markus Weber
Senior Electrical Engineer, Industrial Automation OEM (Germany)
"As a medical device manufacturer, certification documentation is critical for our FDA submissions. Their team provided complete UL and IEC certificates with the first sample shipment. The zero MOQ policy allowed us to prototype with just 5 units."
Dr. Sarah Chen
R&D Manager, Medical Equipment Manufacturer (USA)
15+
Years in Business
40+
Countries Served
50M+
Products Shipped
98%
Client Retention
Try Before You Commit
Zero risk. Full confidence. Three guarantees that make switching easy.
Free Samples
Qualified engineers receive up to 5 free samples for testing and validation. No cost, no obligation.
1-Year Quality Warranty
If any product fails to meet specifications within 1 year, we replace it at no cost — including shipping.
Engineer Tech Support
Qualified application engineers available via email, phone, and live chat to help you select, test, and qualify the right part — with fast response times.
Need a DIN 41612 Replacement?
Get a compatible alternative with drawings, samples, and technical validation support. Tell us your current part number or application — our engineers recommend a matching replacement within 24 hours.
